2SC2825 Datasheet and Replacement


   Type Designator: 2SC2825
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 70 W
   Maximum Collector-Base Voltage |Vcb|: 80 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 6 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 18 MHz
   Collector Capacitance (Cc): 140 pF
   Forward Current Transfer Ratio (hFE), MIN: 800
   Noise Figure, dB: -
   Package: TO126
      - BJT Cross-Reference Search



2SC2825 Datasheet (PDF)

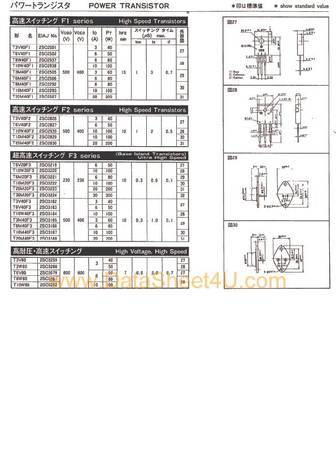

 8.1. Size:361K  1
 2sc2937 2sc3224 2sc3262 2sc3261 2sc3259 2sc2507 2sc2506 2sc2829 2sc2827 2sc2826.pdf pdf_icon

2SC2825

 8.2. Size:107K  toshiba
 2sc2824.pdf pdf_icon

2SC2825

This Material Copyrighted By Its Respective Manufacturer This Material Copyrighted By Its Respective Manufacturer This Material Copyrighted By Its Respective Manufacturer

 8.3. Size:121K  mospec
 2sc2826.pdf pdf_icon

2SC2825

AAA

 8.4. Size:195K  inchange semiconductor
 2sc2827.pdf pdf_icon

2SC2825

isc Silicon NPN Power Transistor 2SC2827DESCRIPTIONCollector-Emitter Sustaining Voltage-: V = 400V(Min)CEO(SUS)Fast Switching SpeedCollector-Emitter Saturation Voltage-: V = 0.7V(Max.)@ I = 3ACE(sat) CMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in high-voltage,high-speed,power switchingapplicat

SHOW MORE
