BDY56 Transistor (IC) Datasheet. Cross Reference Search. BDY56 Equivalent

Type Designator: BDY56

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 115

Maximum collector-base voltage |Ucb|, V: 150

Maximum collector-emitter voltage |Uce|, V: 120

Maximum emitter-base voltage |Ueb|, V: 7

Maximum collector current |Ic max|, A: 15

Maksimalna temperatura (Tj), °C: 200

Transition frequency (ft), MHz: 10

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 20

Noise Figure, dB: -

Package of BDY56 transistor: TO3

BDY56 Transistor Equivalent Substitute - Cross-Reference Search



BDY56 PDF:

1.1. bdy55-bdy56.pdf Size:128K _comset

BDY56
BDY56

NPN SILICON TRANSISTORS, DIFFUSED MESA NPN SILICON TRANSISTORS, DIFFUSED MESA LF Large Signal Power Amplification High Current Fast Switching. Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol Ratings Value Unit BDY55 60 VCEO Collector-Emitter Voltage V BDY56 120 BDY55 100 VCBO Collector-Base Voltage V BDY56 150 BDY55 VEBO Emitter-Base Voltage 7 V BDY56 BDY55 IC C

1.2. bdy55_bdy56.pdf Size:158K _comset

BDY56
BDY56

BDY55 BDY56 NPN SILICON TRANSISTORS, DIFFUSED MESA NPN SILICON TRANSISTORS, DIFFUSED MESA LF Large Signal Power Amplification High Current Fast Switching ABSOLUTE MAXIMUM RATINGS Symbol Ratings Value Unit BDY55 60 VCEO Collector-Emitter Voltage V BDY56 120 BDY55 100 VCBO Collector-Base Voltage V BDY56 150 BDY55 VEBO Emitter-Base Voltage 7V BDY56 BDY55 IC Collector Current 15 A

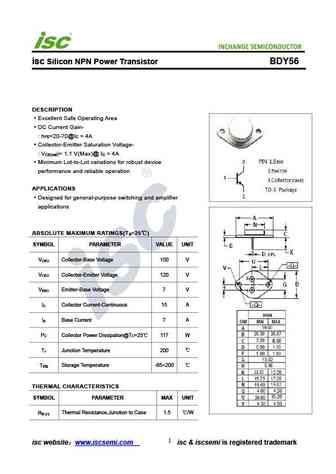

1.3. bdy56.pdf Size:116K _inchange_semiconductor

BDY56
BDY56

Inchange Semiconductor Product Specification Silicon NPN Power Transistors BDY56 DESCRIPTION Ў¤ With TO-3 package Ў¤ High current capability Ў¤ Fast switching speed APPLICATIONS Ў¤ LF large signal power amplification. PINNING (See Fig.2) PIN 1 2 3 Base Emitter Fig.1 simplified outline (TO-3) and symbol Collector DESCRIPTION Absolute maximum ratings(Ta=25Ўж ) SYMBOL VCBO

See also transistors datasheet: BDY48 , BDY48-200 , BDY48-300 , BDY48-400 , BDY49 , BDY53 , BDY54 , BDY55 , BU508 , BDY57 , BDY57A , BDY58 , BDY58R , BDY60 , BDY60A , BDY60B , BDY61 .
