View asdm12n65f detailed specification:

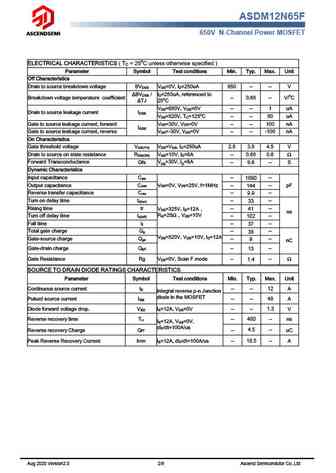

ASDM12N65F 650V N-Channel Power MOSFET Product Summary Features Low Gate Charge Low ON Resistance V DS 650 V Improved dv/dt Capability 100% Avalanche Tested R DS(on),Typ@ VGS=10 V 0.65 RoHS compliant I D 12 A Applications Switching Mode Power Supplies (SMPS) PWM Motor Controls AC to DC Converters LED Lighting Adapter ABSOLUTE MAXIMUM RATINGS (TC = 25oC, unless otherwise noted) Limit Parameter Symbol Unit TO-220F Drain to Source Voltage V 650 V DS (1) Continuous Drain Current (@T =25oC) 12 A C I D Continuous Drain Current (@T =100oC) 7.5 (1) A C Drain current pulsed (2) I 48 (1) A DM Gate to Source Voltage V 30 V GS Single pulsed Avalanche Energy (3) E 576 mJ AS Peak diode Recovery dv/dt (4) dv/dt 5 V/ns Total power dissipation (@T =25oC) 24 W C PD Derating Factor above 25oC 0.19 W/oC Operating Jun... See More ⇒
