View jjt40n120se datasheet:

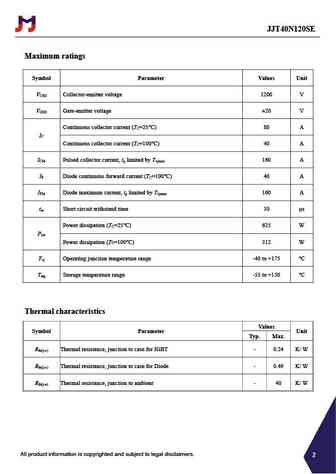

1200V 40A Trench and Field Stop IGBTJJT40N120SEKey performance: V =1200VCETO-247 I =40A@T =100C C V =1.7VCE(sat)Features: Trench and field-stop technology High speed switchingGC Low collector to emitter saturation voltageE Easy parallel switching capability Short circuit withstands time 10s High ruggedness performance RoHS compliantApplications: Inverter Motor driverPackage parametersType Marking Package Packaging MethodJJT40N120SE T40120SE TO-247 TubeAll product information is copyrighted and subject to legal disclaimers. REV A.1.1 | MAY 20241JJT40N120SEMaximum ratingsSymbol Parameter Values UnitV Collector-emitter voltage 1200 VCESV Gate-emitter voltage 20 VGESContinuous collector current (T =25) 80 ACICContinuous collector current (T =100) 40 ACI Pul
