View jjt75n120sa datasheet:

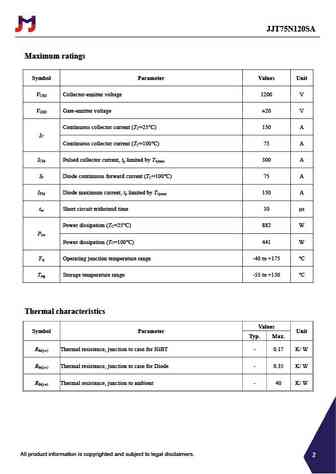

1200V 75A Trench and Field Stop IGBTJJT75N120SAKey performance:TO-247PLUS V =1200VCE I =75A@T =100C C V =1.7VCE(sat)Features:G Trench and field-stop technologyCE Easy parallel switching capability Short circuit withstand time 10s Low VCEsat High ruggedness performance RoHS compliantApplications: servo drive InvertersPackage parametersType Marking Package Packaging MethodJJT75N120SA T75120SA TO-247PLUS TubeAll product information is copyrighted and subject to legal disclaimers. REV A.1.3 | FEB 20251JJT75N120SAMaximum ratingsSymbol Parameter Values UnitV Collector-emitter voltage 1200 VCESV Gate-emitter voltage 20 VGESContinuous collector current (T =25) 150 ACICContinuous collector current (T =100) 75 ACI Pulsed collector current, t limited by T 300 ACM p
