View 2n3905 2n3906 datasheet:

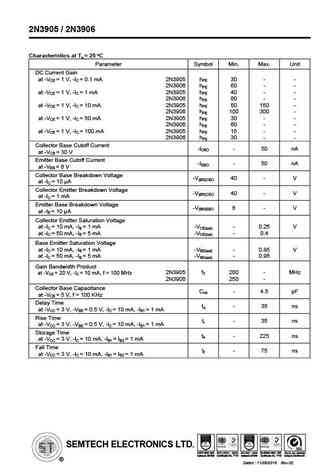

2N3905 / 2N3906 PNP Silicon Epitaxial Planar Transistor for switching and amplifier applications. As complementary types the NPN transistors 2N3903 and 2N3904 are recommended. On special request, these transistors can be manufactured in different pin configurations. 1. Emitter 2. Base 3. Collector TO-92 Plastic Package OAbsolute Maximum Ratings (Ta = 25 C) Parameter Symbol Value UnitCollector Base Voltage -VCBO 40 VCollector Emitter Voltage -VCEO 40 VEmitter Base Voltage -VEBO 6 VCollector Current -IC 200 mAPower Dissipation Ptot 625 mWOJunction Temperature Tj 150 C OStorage Temperature Range Tstg - 55 to + 150 C SEMTECH ELECTRONICS LTD. Dated : 11/08/2016 Rev:02 2N3905 / 2N3906 OCharacteristics at Ta = 25 C Parameter Symbol Min. Max. UnitDC Current Gain at -VCE = 1 V, -IC = 0.1 mA 2N3905 hFE 30 - - 2N3906 hFE 60 - - at
