View 2sa1941r 2sa1941o datasheet:

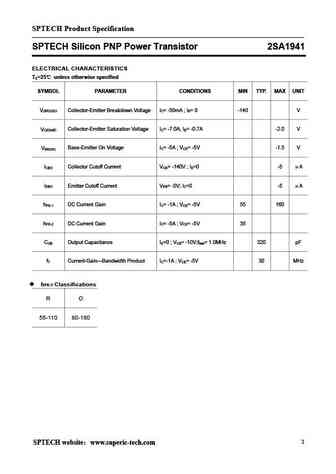

SPTECH Product SpecificationSPTECH Silicon PNP Power Transistor 2SA1941DESCRIPTIONLow Collector Saturation Voltage-: V =- 2.0V(Min) @I =- 7ACE(sat) CGood Linearity of hFEComplement to Type 2SC5198APPLICATIONSPower amplifier applicationsRecommend for 70W high fidelity audio frequencyamplifier output stage applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Collector-Base Voltage -140 VCBOV Collector-Emitter Voltage -140 VCEOV Emitter-Base Voltage -5 VEBOI Collector Current-Continuous -10 ACI Base Current-Continuous -1 ABCollector Power DissipationP 100 WC@ T =25CT Junction Temperature 150 JT Storage Temperature Range -55~150 stg1SPTECH websitewww.superic-tech.comSPTECH Product SpecificationSPTECH Silicon PNP Power Transistor 2SA1941ELECTRICAL CHARACTERISTICST =
