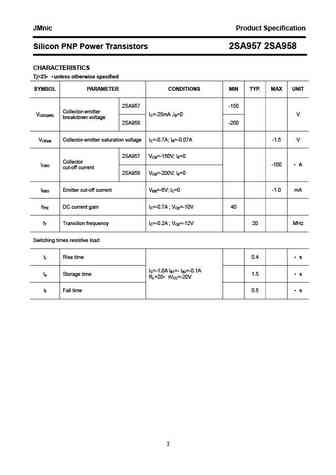

JMnic Product Specification Silicon PNP Power Transistors 2SA957 2SA958 DESCRIPTION With TO-220 package High breakdown voltage High power dissipation APPLICATIONS For general purpose applications PINNING PIN DESCRIPTION1 Emitter Collector;connected to 2 mounting base Fig.1 simplified outline (TO-220) and symbol3 BaseAbsolute maximum ratings(Ta=25) SYMBOL PARAMETER CONDITIONS VALUE UNIT2SA957 -150VCBO Collector-base voltage Open emitter V 2SA958 -200 2SA957 -150VCEO Collector-emitter voltage Open base V 2SA958 -200 VEBO Emitter-base voltage Open collector -6 V IC Collector current -2.0 A IB Base current -1.0 A PT Total power dissipation TC=25 30 W Tj Junction temperature 150 Tstg Storage temperature -55~150 JMnic Product Specification Silicon PNP Power Transistors 2SA957 2SA958 CHARACTERISTICS Tj=2
