View 2sc2412q 2sc2412r 2sc2412s datasheet:

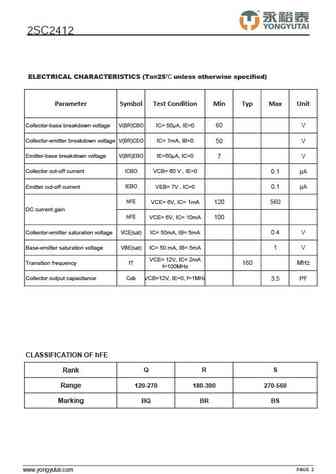

2SC2412TRANSISTOR (NPN)MARKING : Equivalent Circuit :SOT-231.BASE2.EMITTER3.COLLECTORFEATURES: LOW Cob, Cob=2.0 PF(TYP)MAXIMUM RATINGS (Ta=25 unless otherwise noted)Parameter Symbol Value UnitCollector-Base Voltage VCBO 60 VCollector-Emitter Voltage VCEO 50 VEmitter-Base Voltage VEBO 7 VCollector Current -Continuous IC 150 mACollector Current -Puised ICM 200 mACollector Power Dissipation PC 200 mWThermal Resistance From Junction To Ambient RJA 625 /WJunction Temperature Tj 150 Storage Temperature Tstg -55+150 PAGE 1www.yongyutai.com 2SC2412 ELECTRICAL CHARACTERISTICS (Ta=25 unless otherwise specified)Parameter Symbol Test Condition Min Typ Max UnitCollector-base breakdown voltage V(BR)CBO IC= 50A, IE=0 60 VCollector-emitter breakdown voltage V(BR)CEO IC= 1mA, IB=0 50 VEmitter-base breakdown voltage V(BR)EB
