View mj21193 mj21194 datasheet:

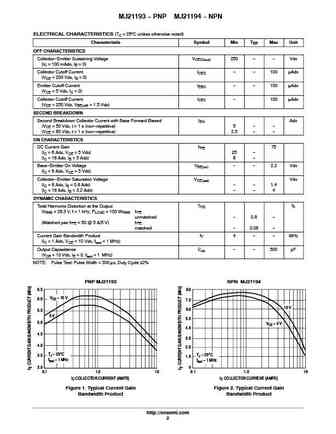

MJ21193 - PNPMJ21194 - NPNSilicon Power TransistorsThe MJ21193 (PNP) and MJ21194 (NPN) utilize Perforated Emittertechnology and are specifically designed for high power audio output,disk head positioners and linear applications.http://onsemi.comFeatures Total Harmonic Distortion Characterized 16 AMP COMPLEMENTARY High DC Current Gain SILICON POWER Excellent Gain Linearity TRANSISTORS High SOA 250 VOLTS, 250 WATTS These Devices are Pb-Free and are RoHS Compliant*SCHEMATICNPNPNPMAXIMUM RATINGSCASE 3CASE 3Rating Symbol Value UnitCollector-Emitter Voltage VCEO 250 Vdc1 1Collector-Base Voltage VCBO 400 VdcBASE BASEEmitter-Base Voltage VEBO 5 VdcEMITTER 2 EMITTER 2Collector-Emitter Voltage - 1.5 V VCEX 400 VdcCollector Current - Continuous IC 16 AdcMARKINGCollector Current - Peak (Note 1) ICM 30 AdcDIAGRAM3Base C
