View tip29-a-b-c datasheet:

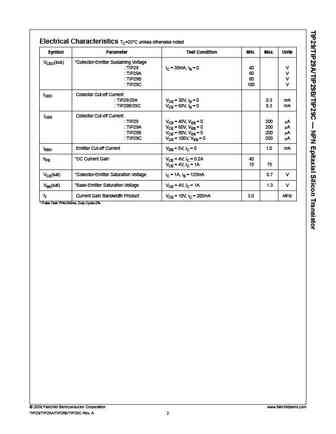

July 2008TIP29/TIP29A/TIP29B/TIP29CNPN Epitaxial Silicon TransistorFeatures Complementary to TIP30/TIP30A/TIP30B/TIP30C1. Base 2. Collector 3. EmitterAbsolute Maximum Ratings TC=25C unless otherwise notedSymbol Parameter Value Units VCBO Collector-Base Voltage : TIP29 40 V : TIP29A 60 V : TIP29B 80 V : TIP29C 100 V VCEO Collector-Emitter Voltage : TIP29 40 V : TIP29A 60 V : TIP29B 80 V : TIP29C 100 V VEBO Emitter-Base Voltage 5 V IC Collector Current (DC) 1 A ICP Collector Current (Pulse) 3 A IB Base Current 0.4 A PC Collector Dissipation (TC=25C) 30 W Collector Dissipation (Ta=25C) 2 W TJ Junction Temperature 150 C TSTG Storage Temperature - 65 ~ 150 C 2008 Fairchild Semiconductor Corporation www.fairchildsemi.comTIP29/TIP29A/TIP29B/TIP29C Rev. A 1 TIP29/TIP29A/TIP29B/TIP29C NPN Epitaxial Silicon TransistorElec
