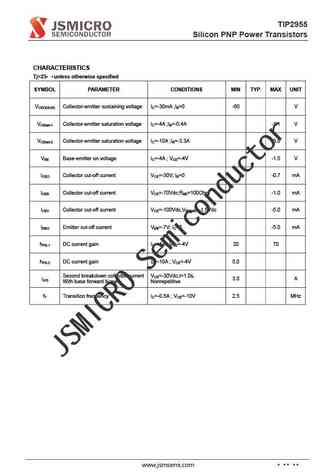

TIP2955Silicon PNP Power TransistorsDESCRIPTION With TO-247 package Complement to type TIP3055 90 W at 25C case temperature 15 A continuous collector current APPLICATIONS Designed for generalpurpose switching and amplifier applications. PINNING PIN DESCRIPTION1 Base Collector;connected to 2 mounting base Fig.1 simplified outline (TO-247) and symbol 3 EmitterAbsolute maximum ratings(Ta=) SYMBOL PARAMETER CONDITIONS VALUE UNITVCBO Collector-base voltage Open emitter -100 V VCEO Collector-emitter voltage Open base -60 V VEBO Emitter-base voltage Open collector -7 V IC Collector current -15 A IB Base current -7 APC Collector power dissipation TC=25 90 WTj Junction temperature 150 Tstg Storage temperature -65~150 THERMAL CHARACTERISTICS SYMBOL PARAMETER VALUE UNITRth j-c Thermal resistance junction to
