View tip2955 tip3055 datasheet:

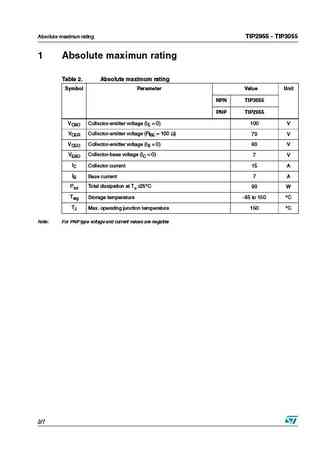

TIP2955TIP3055Complementary power transistorsFeatures Low collector-emitter saturation voltage Complementary NPN - PNP transistorsApplications General purpose Audio Amplifier321DescriptionTO-247The devices are manufactured in epitaxial-base planar technology and are suitable for audio, power linear and switching applications.Figure 1. Internal schematic diagramsTable 1. Device summaryOrder code Marking Package PackagingTIP2955 TIP2955TO-247 tubeTIP3055 TIP3055March 2008 Rev 5 1/7. www.st.com 7Absolute maximun rating TIP2955 - TIP30551 Absolute maximun ratingTable 2. Absolute maximum ratingSymbol Parameter Value UnitNPN TIP3055PNP TIP2955VCBO Collector-emitter voltage (IE = 0) 100 VVCER Collector-emitter voltage (RBE = 100 ) 70 VVCEO Collector-emitter voltage (IB = 0) 60 VVEBO Collector-base volt
