View 1ss361 datasheet:

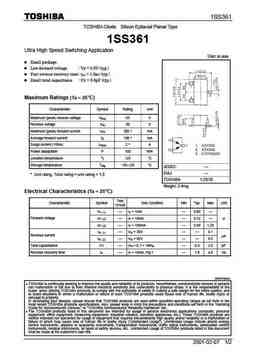

1SS361 TOSHIBA Diode Silicon Epitaxial Planar Type 1SS361 Ultra High Speed Switching Application Unit in mm Small package Low forward voltage : V = 0.9V (typ.) F Fast reverse recovery time : t = 1.6ns (typ.) rr Small total capacitance : C = 0.9pF (typ.) T Maximum Ratings (Ta = 25°C) Characteristic Symbol Rating Unit Maximum (peak) reverse voltage VRM 85 V Reverse voltage VR 80 V Maximum (peak) forward current IFM 300 * mA Average forward current IO 100 * mA Surge current (10ms) IFSM 2 * A Power dissipation P 100 mW Junction temperature Tj 125 °C Storage temperature Tstg -55~125 °C JEDEC ? EIAJ ? * Unit rating. Total rating = unit rating ? 1.5 TOSHIBA 1-2S1B Weight: 2.4mg Electrical Characteristics (Ta = 25°C) Test Characteristic Symbo
