View 2sa1721 datasheet:

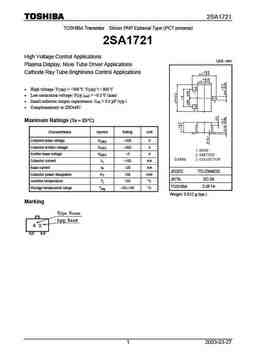

2SA1721 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1721 High Voltage Control Applications Unit: mm Plasma Display, Nixie Tube Driver Applications Cathode Ray Tube Brightness Control Applications • High voltage: VCBO = -300 V, VCEO = -300 V • Low saturation voltage: V = -0.5 V (max) CE (sat) • Small collector output capacitance: C = 5.5 pF (typ.) ob • Complementary to 2SC4497 Maximum Ratings (Ta = = 25°C) = = Characteristics Symbol Rating Unit Collector-base voltage VCBO -300 V Collector-emitter voltage VCEO -300 V Emitter-base voltage VEBO -5 V Collector current IC -100 mA Base current IB -20 mA JEDEC TO-236MOD Collector power dissipation PC 150 mW JEITA SC-59 Junction temperature Tj 150 °C TOSHIBA 2-3F1A Storage temperature rang
