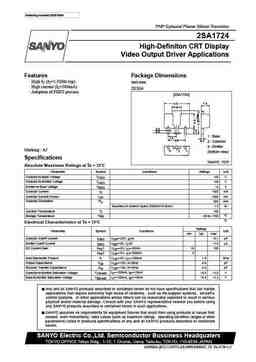

View 2sa1724 datasheet:

Ordering number:EN3159A PNP Epitaxial Planar Silicon Transistor 2SA1724 High-Definiton CRT Display Video Output Driver Applications Features Package Dimensions · High fT (fT=1.5GHz typ). unit:mm · High current (IC=300mA). 2038A · Adoption of FBET process. [2SA1724] 1 : Base 2 : Collector 3 : Emitter Marking : AJ (Bottom view) Specifications SANYO : PCP Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage VCBO –30 V Collector-to-Emitter Voltage VCEO –20 V Emitter-to-Base Voltage VEBO –3 V Collector Current IC –300 mA Collector Current (Pulse) ICP –600 mA Collector Dissipation PC 500 mW Mounted on ceremic board (250mm2? 0.8mm) 1.3 W Junction Temperature Tj 150 ?C Storage Temperature Tstg –55 to +150 ?C Ele
