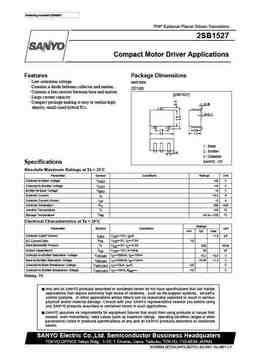

View 2sb1527 datasheet:

Ordering number:EN4667 PNP Epitaxial Planar Silicon Transistors 2SB1527 Compact Motor Driver Applications Features Package Dimensions · Low saturation voltage. unit:mm · Contains a diode between collector and emitter. 2018B · Contains a bias resistor between base and emitter. [2SB1527] · Large current capacity. · Compact package making it easy to realize high- density, small-sized hybrid ICs. 1 : Base 2 : Emitter 3 : Collector SANYO : CP Specifications Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage VCBO –20 V Collector-to-Emitter Voltage VCEO –15 V Emitter-to-Base Voltage VEBO –5 V Collector Current IC –0.8 A Collector Current (Pulse) ICP –2 A Collector Dissipation PC 200 mW Junction Temperature Tj 15
