2sc3448

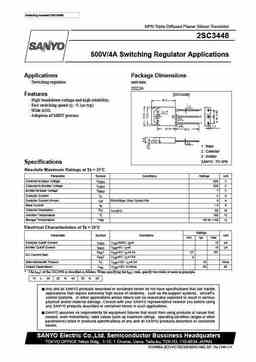

Ordering number:EN1546B NPN Triple Diffused Planar Silicon Transistor 2SC3448 500V/4A Switching Regulator Applications Applications Package Dimensions · Switching regulator. unit:mm 2022A Features [2SC3448] · High breakdown voltage and high reliability. · Fast switching speed (tf : 0.1µ s typ). · Wide ASO. · Adoption of MBIT process. 1 : Base 2 : Collector 3 : Emitter SANYO : TO-3PB Specifications Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage VCBO 800 V Collector-to-Emitter Voltage VCEO 500 V Emitter-to-Base Voltage VEBO 7 V Collector Current IC 4 A Collector Current (Pulse) ICP PW? 300µ s, Duty Cycle? 10% 8 A Base Current IB 1.5 A Collector Dissipation PC Tc=25?C 60 W Junction Temperature Tj 150 ?C
