2sc3449

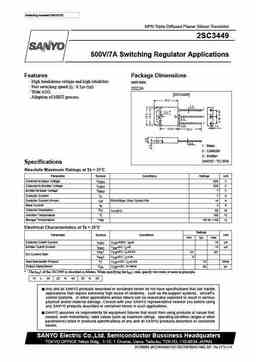

Ordering number:EN1572C NPN Triple Diffused Planar Silicon Transistor 2SC3449 500V/7A Switching Regulator Applications Features Package Dimensions · High breakdown voltage and high reliability. unit:mm · Fast switching speed (tf : 0.1µ s typ). 2022A · Wide ASO. [2SC3449] · Adoption of MBIT process. 1 : Base 2 : Collector 3 : Emitter SANYO : TO-3PB Specifications Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage VCBO 800 V Collector-to-Emitter Voltage VCEO 500 V Emitter-to-Base Voltage VEBO 7 V Collector Current IC 7 A Collector Current (Pulse) ICP PW? 300µ s, Duty Cycle? 10% 14 A Base Current IB 3 A Collector Dissipation PC Tc=25?C 80 W Junction Temperature Tj 150 ?C Storage Temperature Tstg –55 to +150 ?
