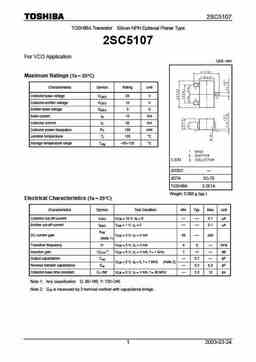

2SC5107 TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5107 For VCO Application Unit: mm Maximum Ratings (Ta = = 25°C) = = Characteristics Symbol Rating Unit Collector-base voltage VCBO 20 V Collector-emitter voltage VCEO 10 V Emitter-base voltage VEBO 3 V Base current IB 15 mA Collector current IC 30 mA Collector power dissipation PC 100 mW Junction temperature Tj 125 °C Storage temperature range Tstg -55~125 °C JEDEC ? JEITA SC-70 TOSHIBA 2-2E1A Weight: 0.006 g (typ.) Electrical Characteristics (Ta = = 25°C) = = Characteristics Symbol Test Condition Min Typ. Max Unit Collector cut-off current ICBO VCB = 10 V, IE = 0 ? ? 0.1 µA Emitter cut-off current IEBO VEB = 1 V, IC = 0 ? ? 0.1 µA hFE DC current gain VCE = 5 V, IC = 5 mA 80 ? 240
