View 2sc5317 datasheet:

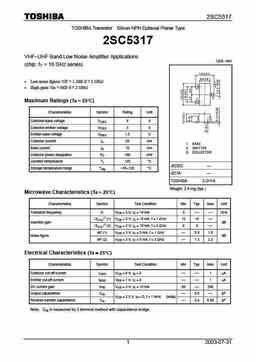

2SC5317 TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5317 VHF~UHF Band Low Noise Amplifier Applications Unit: mm (chip: fT = 16 GHz series) • Low noise figure: NF = 1.3dB (f = 2 GHz) • High gain: Ga = 9dB (f = 2 GHz) Maximum Ratings (Ta = = 25°C) = = Characteristics Symbol Rating Unit Collector-base voltage VCBO 8 V Collector-emitter voltage VCEO 5 V Emitter-bas
