View 2sc5374 datasheet:

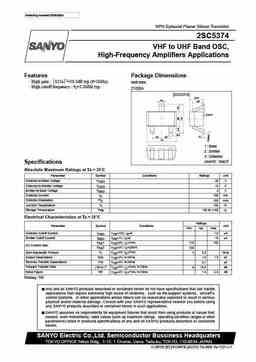

Ordering number:EN5535A NPN Epitaxial Planar Silicon Transistor 2SC5374 VHF to UHF Band OSC, High-Frequency Amplifiers Applications Features Package Dimensions 2 · High gain : ? S21e? =10.5dB typ (f=1GHz). unit:mm · High cutoff frequency : fT=5.2GHz typ. 2106A [2SC5374] 0.75 0.3 0.6 0 to 0.1 0.2 0.1 0.5 0.5 1.6 1 : Base 2 : Emitter 3 : Collector SANYO : SMCP Specifications Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage VCBO 20 V Collector-to-Emitter Voltage VCEO 10 V Emitter-to-Base Voltage VEBO 2 V Collector Current IC 100 mA Collector Dissipation PC 100 mW Junction Temperature Tj 150 ?C Storage Temperature Tstg –55 to +150 ?C Electrical Characteristics at Ta = 25?C Ratings Parameter Symbol Co
