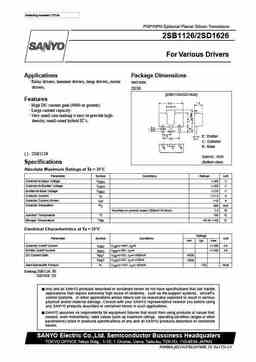

Ordering number:1721A PNP/NPN Epitaxial Planar Silicon Transistors 2SB1126/2SD1626 For Various Drivers Applications Package Dimensions · Relay drivers, hammer drivers, lamp drivers, motor unit:mm drivers, 2038 [2SB1126/2SD1626] Features · High DC current gain (4000 or greater). · Large current capacity. · Very small size making it easy to provide high- density, small-sized hybrid IC’s. E : Emitter C : Collector B : Base ( ) : 2SB1126 SANYO : PCP (Bottom view) Specifications Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage VCBO (–)80 V Collector-to-Emitter Voltage VCEO (–)50 V Emitter-to-Base Voltage VEBO (–)10 V Collector Current IC (–)1.5 A Collector Current (Pulse) ICP (–)3 A Collector Dissipation PC
