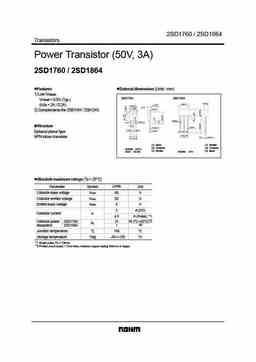

2SD1760 / 2SD1864 Transistors Power Transistor (50V, 3A) 2SD1760 / 2SD1864 Features External dimensions (Units : mm) 1) Low VCE(sat). 2SD1760 2SD1864 VCE(sat) = 0.5V (Typ.) 2.5±0.2 6.8±0.2 (IC/IB = 2A / 0.2A) 2.3 +0.2 6.5±0.2 -0.1 C0.5 5.1 +0.2 0.5±0.1 -0.1 2) Complements the 2SB1184 / 2SB1243. 0.65Max. 0.65±0.1 0.75 0.9 Structure 0.5±0.1 0.55±0.1 2.3±0.2 2.3±0.2 1.0±0.2 Epitaxial planar type (1) (2) (3) 2.54 2.54 NPN silicon transistor 1.05 0.45±0.1 (1) (2) (3) (1) Base (1) Emitter (2) Collector (2) Collector ROHM : CPT3 (3) Emitter (3) Base EIAJ : SC-63 ROHM : ATV Absolute maximum ratings (Ta = 25°C) Parameter Symbol Limits Unit Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 50 V Emitter-base voltage VEBO 5V 3 A (DC) Collec
