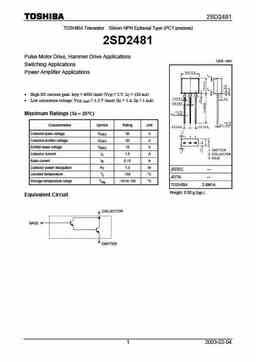

2SD2481 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SD2481 Pulse Motor Drive, Hammer Drive Applications Unit: mm Switching Applications Power Amplifier Applications • High DC current gain: hFE = 4000 (min) (V = 2 V, I = 150 mA) CE C • Low saturation voltage: V = 1.5 V (max) (I = 1 A, I = 1 mA) CE (sat) C B Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 30 V Collector-emitter voltage VCEO 30 V Emitter-base voltage VEBO 10 V Collector current IC 1.5 A Base current IB 0.15 A Collector power dissipation PC 1.3 W JEDEC ? Junction temperature Tj 150 °C JEITA ? Storage temperature range Tstg -55 to 150 °C TOSHIBA 2-8M1A Weight: 0.55 g (typ.) Equivalent Circuit COLLECTOR BASE EMITTER 1 2003
