View 2sk241 datasheet:

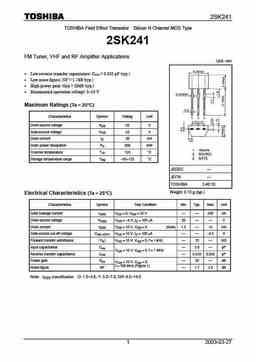

2SK241 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type 2SK241 FM Tuner, VHF and RF Amplifier Applications Unit: mm • Low reverse transfer capacitance: Crss = 0.035 pF (typ.) • Low noise figure: NF = 1.7dB (typ.) • High power gain: GPS = 28dB (typ.) • Recommend operation voltage: 5~15 V Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Drain-source voltage VDS 20 V Gate-source voltage VGS ±5 V Drain current ID 30 mA Drain power dissipation PD 200 mW Channel temperature Tch 125 °C Storage temperature range Tstg -55~125 °C JEDEC ? JEITA ? TOSHIBA 2-4E1D Weight: 0.13 g (typ.) Electrical Characteristics (Ta = 25°C) Characteristics Symbol Test Condition Min Typ. Max Unit Gate leakage current IGSS VDS = 0, VGS = ±5 V ? ? ±50 nA Drai
