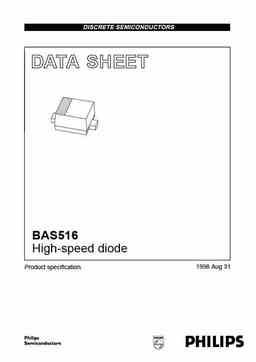

DISCRETE SEMICONDUCTORS DATA SHEET M3D319 BAS516 High-speed diode 1998 Aug 31 Product specification Philips Semiconductors Product specification High-speed diode BAS516 FEATURES PINNING • Ultra small plastic SMD package PIN DESCRIPTION • High switching speed: max. 4 ns 1 cathode • Continuous reverse voltage: max. 75 V 2 anode • Repetitive peak reverse voltage: max. 85 V • Repetitive peak forward current: max. 500 mA. handbook, halfpage 12 APPLICATIONS • High-speed switching in e.g. surface mounted circuits. Top view MAM408 DESCRIPTION The BAS516 is a high-speed switching diode fabricated in Marking code: 6. planar technology, and encapsulated in the SOD523 (SC79) SMD plastic package. Fig.1 Simplified outline (SOD523) and symbol. LIMITING VALUES In accor
