bga2003_2g_highiip3lna

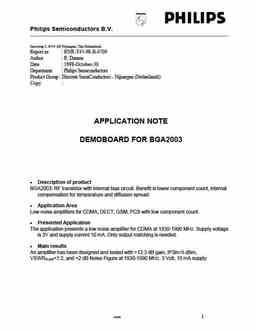

Philips Semiconductors B.V. Gerstweg 2, 6534 AE Nijmegen, The Netherlands Report nr. : RNR-T45-98-B-0709 Author : R. Damen Date : 1998-October-30 Department : Philips Semiconductors Product Group : Discrete SemiConductors - Nijmegen (Netherlands) Copy : APPLICATION NOTE DEMOBOARD FOR BGA2003 • Description of product BGA2003: RF transistor with internal bias circuit. Benefit is lower component count, internal compensation for temperature and diffusion spread. • Application Area Low noise amplifiers for CDMA, DECT, GSM, PCS with low component count. • Presented Application The application presents a low noise amplifier for CDMA at 1930-1990 MHz. Supply voltage is 3V and supply current 10 mA. Only output matching is needed. • Main results An amplifier has been designed and
