View bsh102 2 datasheet:

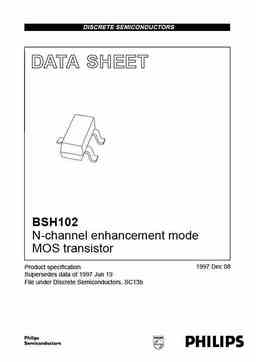

DISCRETE SEMICONDUCTORS DATA SHEET andbook, halfpage M3D088 BSH102 N-channel enhancement mode MOS transistor 1997 Dec 08 Product specification Supersedes data of 1997 Jun 19 File under Discrete Semiconductors, SC13b Philips Semiconductors Product specification N-channel enhancement mode BSH102 MOS transistor FEATURES PINNING - SOT23 • Very low threshold PIN SYMBOL DESCRIPTION • High-speed switching 1 g gate • No secondary breakdown 2 s source • Direct interface to C-MOS, TTL etc. 3 d drain APPLICATIONS • Power management 3 handbook, halfpage • DC to DC converters d • Battery powered applications • ‘Glue-logic’; interface between logic blocks and/or g periphery • General purpose switch. s 1 2 DESCRIPTION Top view MAM273 N-channel enhancement mode MOS t
