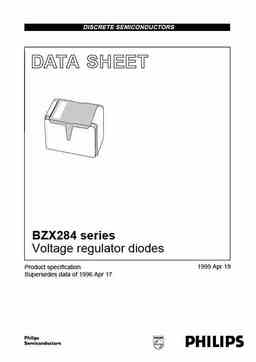

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D154 BZX284 series Voltage regulator diodes 1999 Apr 19 Product specification Supersedes data of 1996 Apr 17 Philips Semiconductors Product specification Voltage regulator diodes BZX284 series FEATURES DESCRIPTION • Total power dissipation: Low-power voltage regulator diodes in a small ceramic SMD SOD110 package. max. 400 mW The diodes are available in the normalized E24 ±2% (BZX284-B) and ±5% (BZX284-C) tolerance range. The series consists of 37 types with nominal • Two tolerance series: working voltages from 2.4 to 75 V. ±2% and ±5% • Working voltage range: nom. 2.4 to 75 V (E24 range). cathode mark handbook, 4 columns ak ka APPLICATIONS • General regulation functions. bottom view side view top view MAM219 Fig
