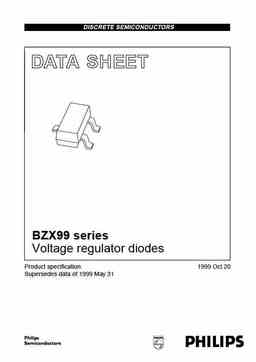

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D088 BZX99 series Voltage regulator diodes Product specification 1999 Oct 20 Supersedes data of 1999 May 31 Philips Semiconductors Product specification Voltage regulator diodes BZX99 series FEATURES PINNING • Total power dissipation: max. 300 mW PIN DESCRIPTION • Tolerance: ±5% 1 anode • Working voltage range: nom. 2.4 to 15 V (E24 range) 2 not connected • Improved Iz/Vz characteristics at low currents 3 cathode (Iz =50µA). This results in a noise free and sharp breakdown knee. APPLICATIONS handbook, halfpage 21 • General regulation functions, where low noise at low currents is required • Low-power consumption applications (e.g. hand-held 2 1 applications). n.c. 3 DESCRIPTION 3 Low-power low noise voltag
