View bcw61a sam datasheet:

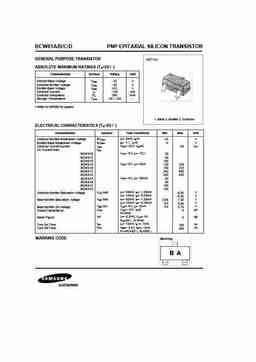

BCW61A/B/C/D PNP EPITAXIAL SILICON TRANSISTOR GENERAL PURPOSE TRANSISTOR SOT-23 ABSOLUTE MAXIMUM RATINGS (T =25 ) A Characteristic Symbol Rating Unit Cllector-Base Voltage VCBO -32 V Collector-Emitter Voltage VCEO -32 V Emitter-Base Voltage VEBO -5.0 V Collector Current IC -100 mA Collector Dissipation PC 350 mW Storage Temperature TSTG -55 ~ 150 • Refer to KS5086 for graphs 1
