View bf1107 datasheet:

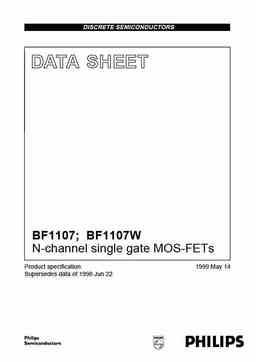

DISCRETE SEMICONDUCTORS DATA SHEET BF1107; BF1107W N-channel single gate MOS-FETs Product specification 1999 May 14 Supersedes data of 1998 Jun 22 Philips Semiconductors Product specification N-channel single gate MOS-FETs BF1107; BF1107W FEATURES • Currentless RF switch. handbook, halfpage 3 APPLICATIONS • Various RF switching applications such as: 12 - Passive loop through for VCR tuner Top view MSB003 - Transceiver switching. Marking code: S3p. DESCRIPTION Fig.1 Simplified outline SOT23 (BF1107). The BF1107 and BF1107W are depletion type field-effect transistors in SOT23 and SOT323 packages respectively. The low loss and high isolation capabilities of this MOS-FET provide excellent RF switching functions. Integrated diodes between gate and source and between 3
