bfr92p

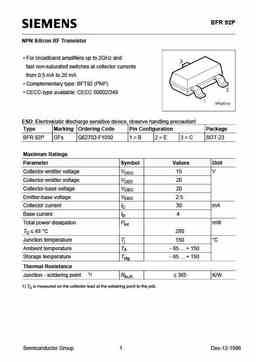

BFR 92P NPN Silicon RF Transistor � For broadband amplifiers up to 2GHz and fast non-saturated switches at collector currents from 0.5 mA to 20 mA � Complementary type: BFT92 (PNP) � CECC-type available: CECC 50002/249 ESD: Electrostatic discharge sensitive device, observe handling precaution! Type Marking Ordering Code Pin Configuration Package BFR 92P GFs Q62702-F1050 1 = B 2 = E 3 = C SOT-23 Maximum Ratings Parameter Symbol Values Unit Collector-emitter voltage VCEO 15 V Collector-emitter voltage VCES 20 Collector-base voltage VCBO 20 Emitter-base voltage VEBO 2.5 Collector current IC 30 mA Base current IB 4 Total power dissipation Ptot mW TS ? 48 �C 280 Junction temperature Tj 150 �C Ambient temperature TA - 65 ... + 150 Storage temperature Tstg - 65 ... + 150
