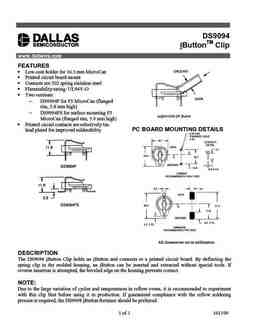

DS9094 iButtonTM Clip www.dalsemi.com FEATURES Low-cost holder for 16.3 mm MicroCan Printed circuit board mount Contacts are 302 spring stainless steel Flammability rating: UL94V-O Two versions: - DS9094F for F5 MicroCan (flanged rim, 5.8 mm high) - DS9094FS for surface mounting F5 MicroCan (flanged rim, 5.8 mm high) Printed circuit contacts are selectively tin- PC BOARD MOUNTING DETAILS lead plated for improved solderability All dimensions are in millimeters. DESCRIPTION The DS9094 iButton Clip holds an iButton and connects to a printed circuit board. By deflecting the spring clip in the molded housing, an iButton can be inserted and extracted without special tools. If reverse insertion is attempted, the beveled edge on the housing prevents contact. NOTE: Due t
