View dtb143ek detailed specifications:
POWER MOSFET, IGBT, IC, TRIACS DATABASE

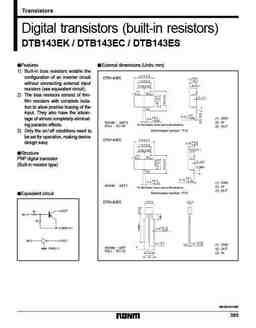

Transistors Digital transistors (built-in resistors) DTB143EK / DTB143EC / DTB143ES FFeatures FExternal dimensions (Units mm) 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin- film resistors with complete isola- tion to allow positive biasing of the input. They also have the advan- tage of almost completely eliminat- ing parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. FStructure PNP digital transistor (Built-in resistor type) FEquivalent circuit (96-304-B143E) 385 Transistors DTB143EK / DTB143EC / DTB143ES FAbsolute maximum ratings (Ta = 25_C) FElectrical characteristics (Ta... See More ⇒
