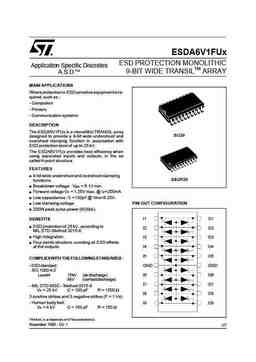

? ESDA6V1FUx ESD PROTECTION MONOLITHIC Application Specific Discretes 9-BIT WIDE TRANSILTM ARRAY A.S.D.TM MAIN APPLICATIONS Whereprotectionin ESD sensitiveequipmentis re- quired, such as - Computers - Printers - Communicationsystems DESCRIPTION The ESDA6V1FUx is a monolithic TRANSIL array SO20 designed to provide a 9-bit wide undershoot and overshoot clamping function in association with ESD protection level of up to 25 kV. The ESDA6V1FUx provides best efficiency when using separated inputs and outputs, in the so called 4-point structure. FEATURES 9-bit wide undershootand overshoot clamping SSOP20 functions. Breakdown voltage V = 6.1V min. BR Forward voltage V = 1.25V max. @ I =200mA F F Low capacitance C =130pF @ V =5.25V. RM Low clamping voltage. PIN-OU... See More ⇒
