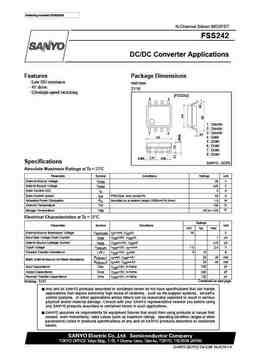

Ordering number:ENN6259 N-Channel Silicon MOSFET FSS242 DC/DC Converter Applications Features Package Dimensions · Low ON resistance. unit:mm · 4V drive. 2116 · Ultrahigh-speed switching. [FSS242] 8 5 1 : Source 2 : Source 14 3 : Source 0.2 5.0 4 : Gate 5 : Drain 6 : Drain 7 : Drain 8 : Drain 0.595 1.27 0.43 Specifications SANYO : SOP8 Absolute Maximum Ratings at Ta = 25?C Parameter Symbol Conditions Ratings Unit Drain-to-Source Voltage VDSS 30 V Gate-to-Source Voltage VGSS ±20 V Drain Current (DC) ID 8 A Drain Current (pulse) IDP PW? 10µs, duty cycle? 1% 52 A Mounted on a ceramic board (1000mm2? 0.8mm) Allowable Power Dissipation PD 1.8 W ?C Channel Temperature Tch 150 Storage Temperature Tstg –55 to +150 ?C Electrical Characteristics at Ta = 25?C
