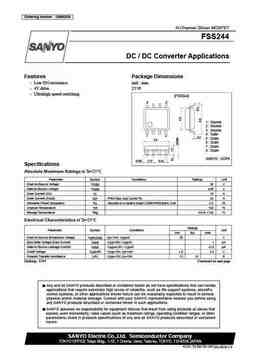

Ordering number : ENN6938 FSS244 N-Channel Silicon MOSFET FSS244 DC / DC Converter Applications Features Package Dimensions • Low ON-resistance. unit : mm • 4V drive. 2116 • Ultrahigh speed switching. [FSS244] 85 1 : Source 2 : Source 3 : Source 4 : Gate 14 0.2 5 : Drain 5.0 6 : Drain 7 : Drain 8 : Drain SANYO : SOP8 0.595 1.27 0.43 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Conditions Ratings Unit Drain-to-Source Voltage VDSS 30 V Gate-to-Source Voltage VGSS ±20 V Drain Current (DC) ID 10 A Drain Current (Pulse) IDP PW?10µs, duty cycle?1% 52 A Allowable Power Dissipation PD Mounted on a ceramic board (1200mm2 0.8mm) 1unit 2.0 W Channel Temperature Tch 150 °C Storage Temperature Tstg --55 to +150 °C Electrical Characteristics at T
