irfz44ns_1

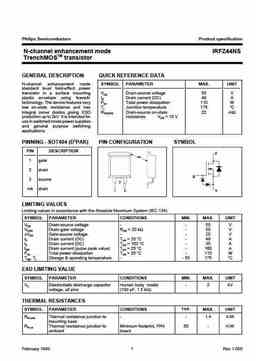

Philips Semiconductors Product specification N-channel enhancement mode IRFZ44NS TrenchMOSTM transistor GENERAL DESCRIPTION QUICK REFERENCE DATA N-channel enhancement mode SYMBOL PARAMETER MAX. UNIT standard level field-effect power transistor in a surface mounting VDS Drain-source voltage 55 V plastic envelope using ’trench’ ID Drain current (DC) 49 A technology. The device features very Ptot Total power dissipation 110 W low on-state resistance and has Tj Junction temperature 175 ?C integral zener diodes giving ESD RDS(ON) Drain-source on-state 22 m? protection up to 2kV. It is intended for resistance VGS = 10 V use in switched mode power supplies and general purpose switching applications. PINNING - SOT404 (D2PAK) PIN CONFIGURATION SYMBOL PIN DESCRIPTION d mb 1 gat
