View lb1834m datasheet:

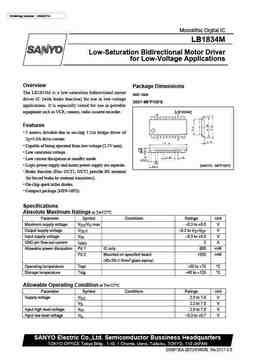

Ordering number : EN3517A Monolithic Digital IC LB1834M Low-Saturation Bidirectional Motor Driver for Low-Voltage Applications Overview Package Dimensions The LB1834M is a low-saturation bidirectional motor unit: mm driver IC (with brake function) for use in low-voltage 3097-MFP16FS applications. It is especially suited for use in portable equipment such as VCR, camera, radio cassette recorder. [LB1834M] Features • 2 motors drivable due to on-chip 1.5ch bridge driver of IO=1.0A drive current. • Capable of being operated from low voltage (2.5V min). • Low saturation voltage. • Low current dissipation at standby mode. • Logic power supply and motor power supply are separate. SANYO : MFP16FS • Brake function (Pins OUT1, OUT2 provide BS terminal for forced brake by extern
