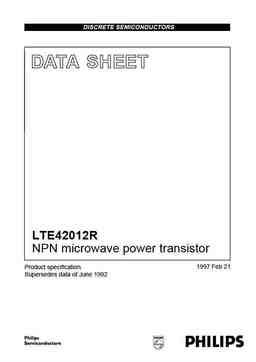

DISCRETE SEMICONDUCTORS DATA SHEET LTE42012R NPN microwave power transistor 1997 Feb 21 Product specification Supersedes data of June 1992 Philips Semiconductors Product specification NPN microwave power transistor LTE42012R FEATURES PINNING - SOT440A • Interdigitated structure provides high emitter efficiency PIN DESCRIPTION • Diffused emitter ballasting resistor provides excellent 1 collector current sharing and withstanding a high VSWR 2 base • Gold metallization realizes very stable characteristics 3 emitter connected to flange and excellent lifetime • Multicell geometry gives good balance of dissipated power and low thermal resistance • Input matching cell improves input impedance and 1 olumns allows an easier design of wideband circuits. c APPLICATIONS b •
