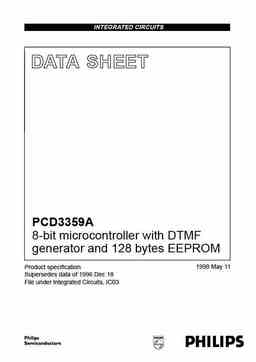

INTEGRATED CIRCUITS DATA SHEET PCD3359A 8-bit microcontroller with DTMF generator and 128 bytes EEPROM 1998 May 11 Product specification Supersedes data of 1996 Dec 18 File under Integrated Circuits, IC03 Philips Semiconductors Product specification 8-bit microcontroller with DTMF PCD3359A generator and 128 bytes EEPROM CONTENTS 9 TIMING 10 RESET 1 FEATURES 11 IDLE MODE 2 GENERAL DESCRIPTION 12 STOP MODE 3 ORDERING INFORMATION 13 INSTRUCTION SET RESTRICTIONS 4 BLOCK DIAGRAM 14 OVERVIEW OF PORT AND 5 PINNING INFORMATION POWER-ON-RESET CONFIGURATION 5.1 Pinning 15 SUMMARY OF DERIVATIVE REGISTERS 5.2 Pin descriptions 16 HANDLING 6 FREQUENCY GENERATOR 17 LIMITING VALUES 6.1 Frequency generator derivative registers 18 DC CHARACTERISTICS 6.2 Melody output (P1.7/
