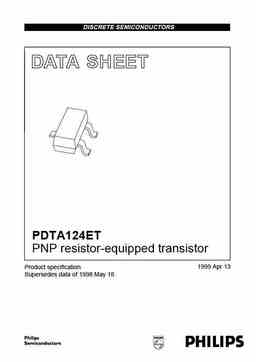

DISCRETE SEMICONDUCTORS DATA SHEET ok, halfpage M3D088 PDTA124ET PNP resistor-equipped transistor 1999 Apr 13 Product specification Supersedes data of 1998 May 18 Philips Semiconductors Product specification PNP resistor-equipped transistor PDTA124ET FEATURES • Built-in bias resistors R1 and R2 (typ. 22 k? each) 3 handbook, 4 columns • Simplification of circuit design 3 • Reduces number of components R1 1 and board space. R2 APPLICATIONS 2 1 2 • Especially suitable for space Top view MAM100 reduction in interface and driver circuits • Inverter circuit configurations Fig.1 Simplified outline (SOT23) and symbol. without use of external resistors. DESCRIPTION MARKING PNP resistor-equipped transistor in a TYPE MARKING SOT23 plastic package. NUMBER CODE(1)
