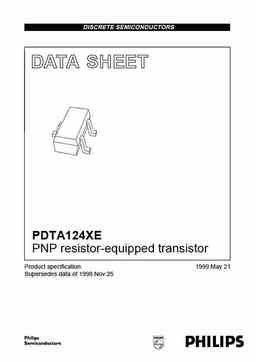

DISCRETE SEMICONDUCTORS DATA SHEET M3D173 PDTA124XE PNP resistor-equipped transistor Product specification 1999 May 21 Supersedes data of 1998 Nov 25 Philips Semiconductors Product specification PNP resistor-equipped transistor PDTA124XE FEATURES • Built-in bias resistors R1 and R2 (typ. 22 k? and 47 k? respectively) • Simplification of circuit design • Reduces number of components and board space. handbook, halfpage 3 3 R1 1 APPLICATIONS R2 2 • Especially suitable for space reduction in interface and 12 driver circuits Top view MAM345 • Inverter circuit configurations without use of external resistors. DESCRIPTION Fig.1 Simplified outline (SC-75) and symbol. PNP resistor-equipped transistor in an SC-75 (SOT416) plastic package. NPN complement: PDTC124XE. M
