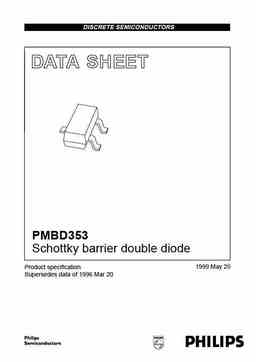

DISCRETE SEMICONDUCTORS DATA SHEET ook, halfpage M3D088 PMBD353 Schottky barrier double diode 1999 May 25 Product specification Supersedes data of 1996 Mar 20 Philips Semiconductors Product specification Schottky barrier double diode PMBD353 FEATURES DESCRIPTION • Low forward voltage Planar Schottky barrier double diode in a SOT23 small plastic SMD package. • Small SMD package • Low capacitance. handbook, 2 columns 3 APPLICATIONS • UHF mixer handbook, 2 columns 3 • Sampling circuits 12 • Modulators MGC487 • Phase detection. 1 2 Top view MGC421 PINNING PIN DESCRIPTION Marking code: A6p = made in Hong Kong; A6t = made in Malaysia. 1k1 2a2 Fig.1 Simplified outline (SOT23) pin configuration and symbol. 3a1, k2 LIMITING VALUES In accordance with the Absolute
