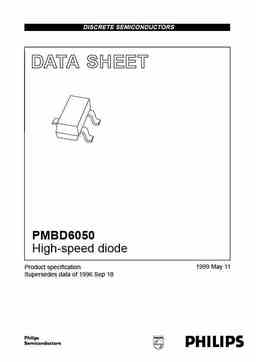

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D088 PMBD6050 High-speed diode 1999 May 11 Product specification Supersedes data of 1996 Sep 18 Philips Semiconductors Product specification High-speed diode PMBD6050 FEATURES DESCRIPTION PINNING • Small plastic SMD package The PMBD6050 is a high-speed PIN DESCRIPTION switching diode fabricated in planar • High switching speed: max. 4 ns 1 anode technology, and encapsulated in the • Continuous reverse voltage: 2 not connected small SOT23 plastic SMD package. max. 70 V 3 cathode • Repetitive peak reverse voltage: max. 85 V • Repetitive peak forward current: max. 500 mA. handbook, halfpage 21 2 APPLICATIONS 1 n.c. • High-speed switching in thick and 3 thin-film circuits. 3 MAM185 Marking code: p5A = ma
