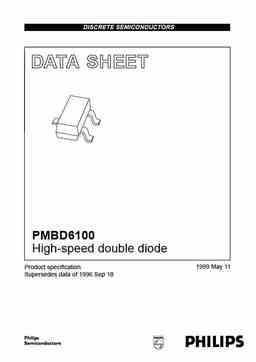

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D088 PMBD6100 High-speed double diode 1999 May 11 Product specification Supersedes data of 1996 Sep 18 Philips Semiconductors Product specification High-speed double diode PMBD6100 FEATURES DESCRIPTION PINNING • Small plastic SMD package The PMBD6100 consists of two PIN DESCRIPTION high-speed switching diodes with • High switching speed: max. 4 ns 1 anode (a1) common cathodes, fabricated in • General application 2 anode (a2) planar technology, and encapsulated • Continuous reverse voltage: in the small SOT23 plastic SMD 3 common cathode max. 70 V package. • Repetitive peak reverse voltage: max. 85 V • Repetitive peak forward current: max. 450 mA. handbook, 4 columns 21 APPLICATIONS 21 • High-speed switchin
