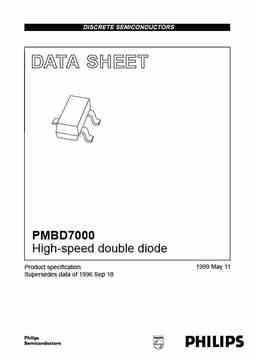

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D088 PMBD7000 High-speed double diode 1999 May 11 Product specification Supersedes data of 1996 Sep 18 Philips Semiconductors Product specification High-speed double diode PMBD7000 FEATURES DESCRIPTION PINNING • Small plastic SMD package The PMBD7000 consists of two PIN DESCRIPTION high-speed switching diodes • High switching speed: max. 4 ns 1 anode connected in series, fabricated in • Continuous reverse voltage: 2 cathode planar technology, and encapsulated max. 100 V in the small SOT23 plastic SMD 3 common connection • Repetitive peak reverse voltage: package. max. 100 V • Repetitive peak forward current: max. 450 mA. handbook, halfpage 21 APPLICATIONS • High-speed switching in e.g. 2 1 surface mounte
