pmbf5484_5485_5486_cnv_2

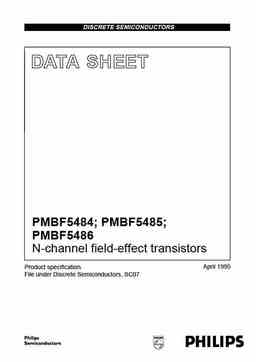

DISCRETE SEMICONDUCTORS DATA SHEET PMBF5484; PMBF5485; PMBF5486 N-channel field-effect transistors April 1995 Product specification File under Discrete Semiconductors, SC07 Philips Semiconductors Product specification PMBF5484; N-channel field-effect transistors PMBF5485; PMBF5486 FEATURES • Low noise • Interchangeability of drain and source connections • High gain. 3 handbook, halfpage DESCRIPTION d g N-channel, symmetrical, silicon s junction FETs in a surface-mountable 12 SOT23 envelope. Intended for use in VHF/UHF amplifiers, oscillators and Top view MAM385 mixers. PINNING - SOT23 PIN DESCRIPTION Fig.1 Simplified outline and symbol. 1 source 2 drain 3 gate QUICK REFERENCE DATA MARKING CODES: SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT PMBF5484: p6
